Beschreibung

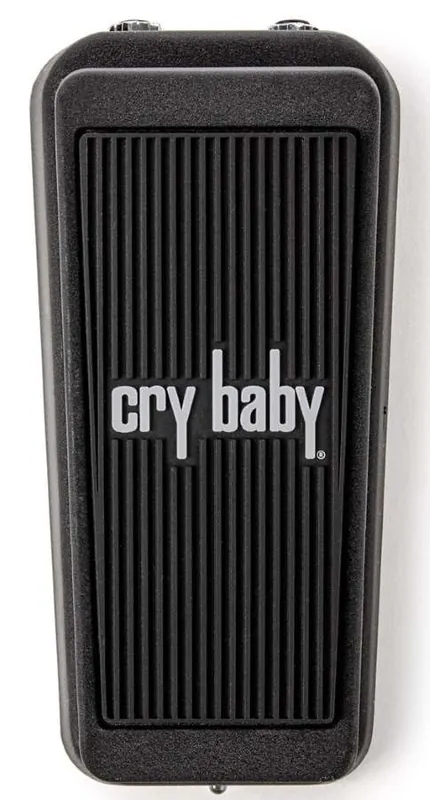

Produktbeschreibung zur „CBJ95 Cry Baby Junior Wah Wah“ Dunlop CBJ95 Cry Baby Junior Wah true bypass Das Cry Baby Junior Wah verfügt über frontmontierte Buchsen und ein ca. 20,32 cm Gehäuse für saubere Konfigurationen auf den beliebtesten Boards der Welt, so dass Sie sich nicht zwischen einem aufgeräumten Layout und Ihrem Cry Baby Wah entscheiden müssen. BASIC OPERATIONPOWERThe Cry Baby Junior Wah is powered by one 9-volt battery (accessed via the bottom of the pedal), the Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies. OPERATION1. Run a shielded instrument cable from your guitar to the CBJ95s INSTRUMENT jack.2. Run another shielded instrument cable from the CBJ95s AMPLIFIER jack into your amplifier input.3. Turn on the amplifier and begin playing.4. To turn the pedal on/off, push the top of the pedal down until you hear a Click.5. Located under the rocker at the heel of the pedal is an adjustable torque clutch that allows the amount of resistance the rocker has to being moved. Turn clockwise to increase resistance or counterclockwise to decrease resistance (wrench included). See TORQUE ADJUSTMENT diagram.6. The VOICING switch allows you to change the frequency range of the CBJ95. Default setting is H—High, for the standard GCB95 sound. For a more vintage, midrange-focused sound, set the switch to M. For a lower frequency range, select L. See VOICING SWITCH diagram.7. By rocking your foot back and forth on the mini pedal, you can instantaneously change the effect that the Cry Baby Wah has on the tone of your instrument. VoicingH 380 Hz to 2100 HzM 330 Hz to 1800 HzL 270 Hz to 1500 Hz SPECIFICATIONSIMPEDANCE:Input Impedance 800 kOhmOutput Impedance WAH RANGE SELECTORRange Selector Switch Position (H towards Heel, L towards Toe)H 380 Hz to 2100 HzM 330 Hz to 1800 HzL 270 Hz to 1500 Hz MAXIMUM LEVELInput -8.0 dBVOutput +10 dBV MAXIMUM GAINHeel Down +19.5 dBToe Down +19.0 dB NOISE FLOORHeel Down -98 dBVToe Down -89 dBV Bypass True HardwireCurrent Draw 3 mAPower Supply 9 volts DC HerstellerinformationenHersteller-InformationenDunlop Manufacturing inc.PO Box 84694510 CA Beniciacustomerservice@jimdunlop.comEU-Verantwortlicher-InformationenAlgam DACHDachauer Str. 11480636 Mü[email protected] und WarnhinweiseSpezifische Sicherheitshinweise, die für das Produkt gelten, sind in der Bedienungsanleitung des Produkts zu finden.
